How to Make a Pop-Up House Mechanism?

A pop-up house mechanism works by attaching a folded paper house to the inside of a card base. When the card opens, the glued tabs pull the house upright. When the card closes, the walls and roof fold back into a flat shape.

In this step-by-step tutorial, you will learn how to make a mini pop-up house card mechanism, including printing the template, cutting the pieces, scoring the fold lines, folding the house body, attaching the roof, gluing the tabs, and testing the closing motion.

What Is a Pop-Up House Mechanism?

A pop-up house mechanism is a small paper engineering structure that turns a flat card into a three-dimensional house scene. The house is attached to the card base with glue tabs, and the folds guide the movement as the card opens and closes.

The most important parts are the center fold of the card, the folded house body, the roof, and the glue tabs. If these parts are aligned correctly, the house will stand up when opened and fold down neatly when closed.

How the Mini House Pop-Up Mechanism Works

This mini house pop-up card uses a simple but precise mechanism. The card base provides the main opening movement. The house body creates the vertical structure. The roof folds over the top. The glue tabs connect the house to the card and control the angle of the pop-up.

If the tabs are placed too far from the center fold, the house may lean or fail to stand upright. If the roof fold is not scored clearly, the card may not close flat. Before gluing anything permanently, test the movement and make sure the paper folds naturally.

The Base Mechanisms Behind This House

This pop-up house is easier to understand if you separate it into two mechanism ideas: the support movement at the bottom and the box-like volume of the house body.

The bottom of the house works like a small 180 degree asymmetrical V-fold mechanism. In a regular V-fold, both sides of the V behave evenly. In an asymmetrical V-fold, the two sides can differ in length, angle, or placement, which creates a directional opening effect. For this house card, that asymmetry helps the house rise from the card base while still folding back toward the center when the card closes.

The house body itself is related to the 180 degree V-fold open box mechanism. An open box mechanism adds side planes to a V-fold so the structure opens into a stable volume instead of a simple flat flap. The mini house uses the same idea in a decorative form: the walls become the box-like volume, and the roof turns that volume into a recognizable house.

So this project is not only a craft template. It is also a practical example of how basic paper engineering mechanisms can be combined into a more expressive object.

Tools and Materials

You will need:

Printed pop-up mini house template
Cardstock or thick paper
Craft knife or scissors
Cutting mat
Ruler
Scoring tool
Glue
Optional markers or colored paper for decoration

Cardstock is recommended because it gives the house enough strength to stand upright. Regular printer paper can work for practice, but it may feel too soft for the finished card.

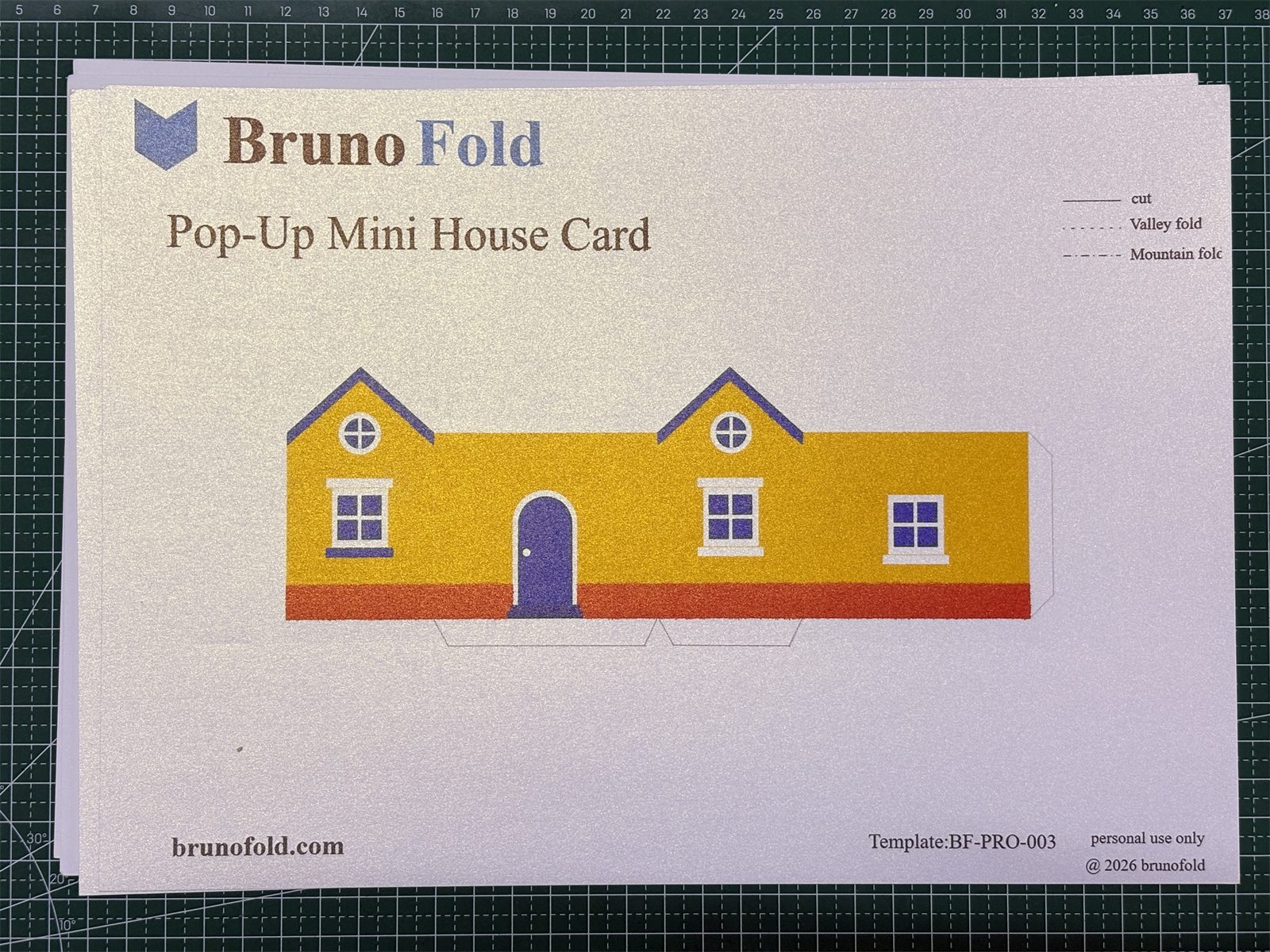

Step 1: Print the Pop-Up House Template

Print the pop-up house template on cardstock. Before cutting, look at the guide marks on the template. The solid lines show where to cut, while the fold lines show where to make valley folds and mountain folds.

A valley fold bends inward like a V shape. A mountain fold bends outward like a peak. These fold directions are what allow the house to rise and collapse correctly.

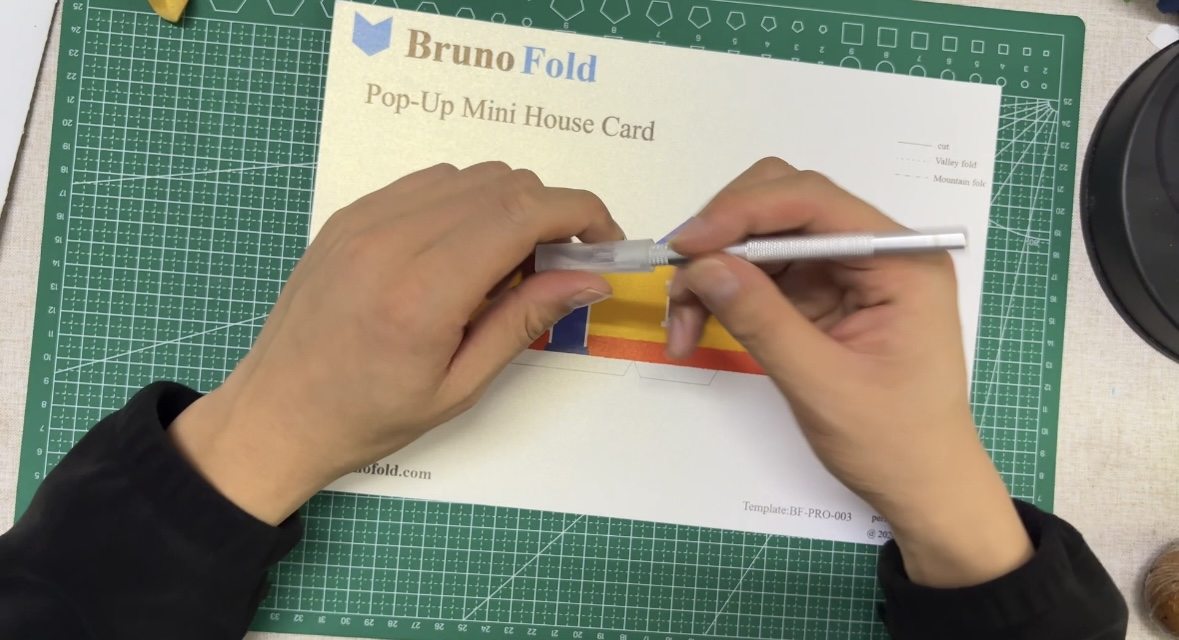

Step 2: Cut Out the Template Pieces

Cut carefully along the outer cut lines. A craft knife is useful for straight edges and small details, but scissors can also work if you are careful.

Do not remove the glue tabs. They may look like extra paper at first, but they are part of the mechanism and will be used to attach the house to the card base.

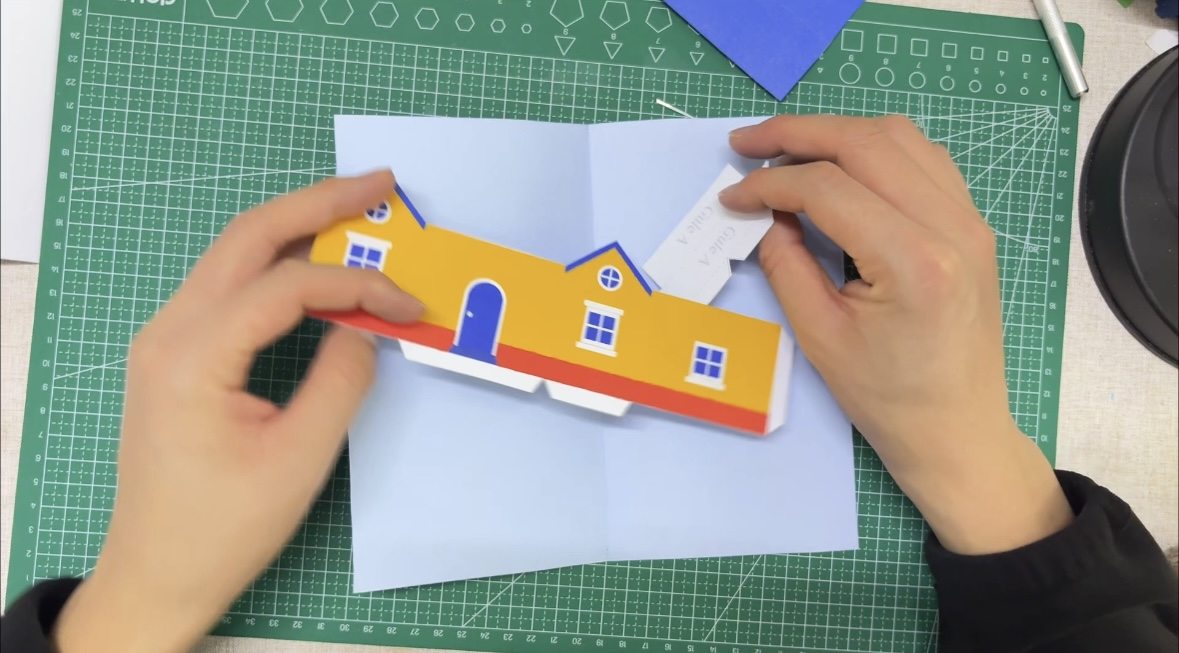

Step 3: Check All Pieces Before Folding

After cutting, lay out the house body, roof piece, and card base. Check that all tabs are still attached and that the fold lines are visible.

This quick check helps prevent problems later. If a tab is missing or a fold line is unclear, it is much easier to fix it before the house is assembled.

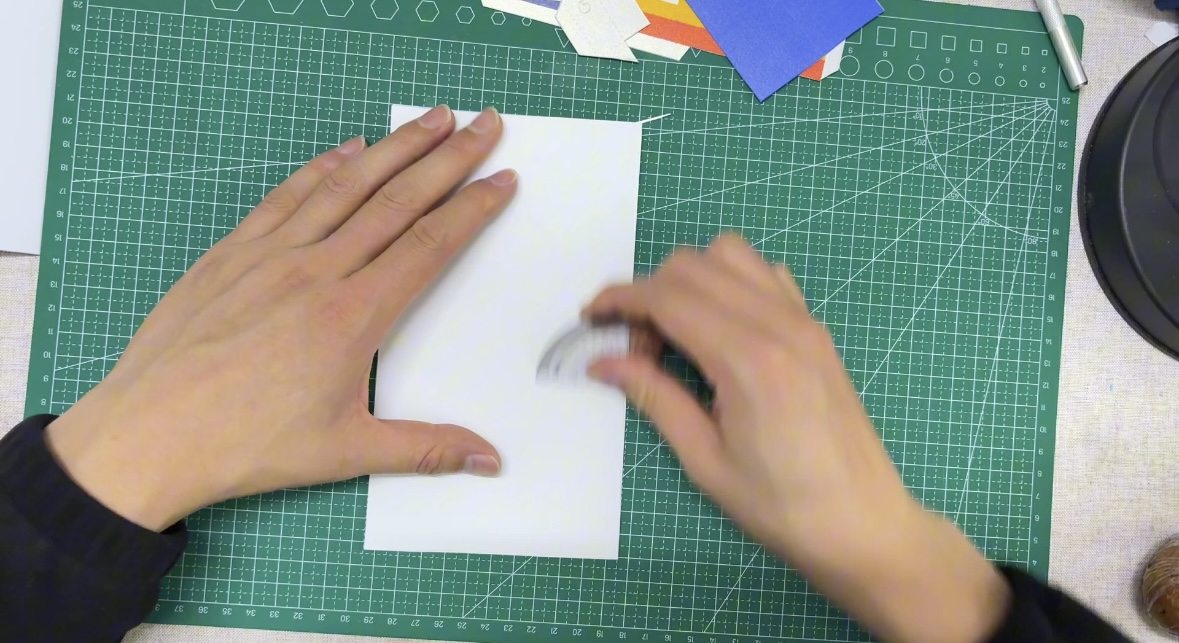

Step 4: Score the Valley Folds and Mountain Folds

Score every fold line before folding the paper. You can use a scoring tool, the back of a craft knife, or a ruler with a blunt point.

Scoring creates clean, controlled folds. This is especially important for the side walls, roof fold, card center fold, and glue tabs. A pop-up mechanism needs accurate folds to move smoothly.

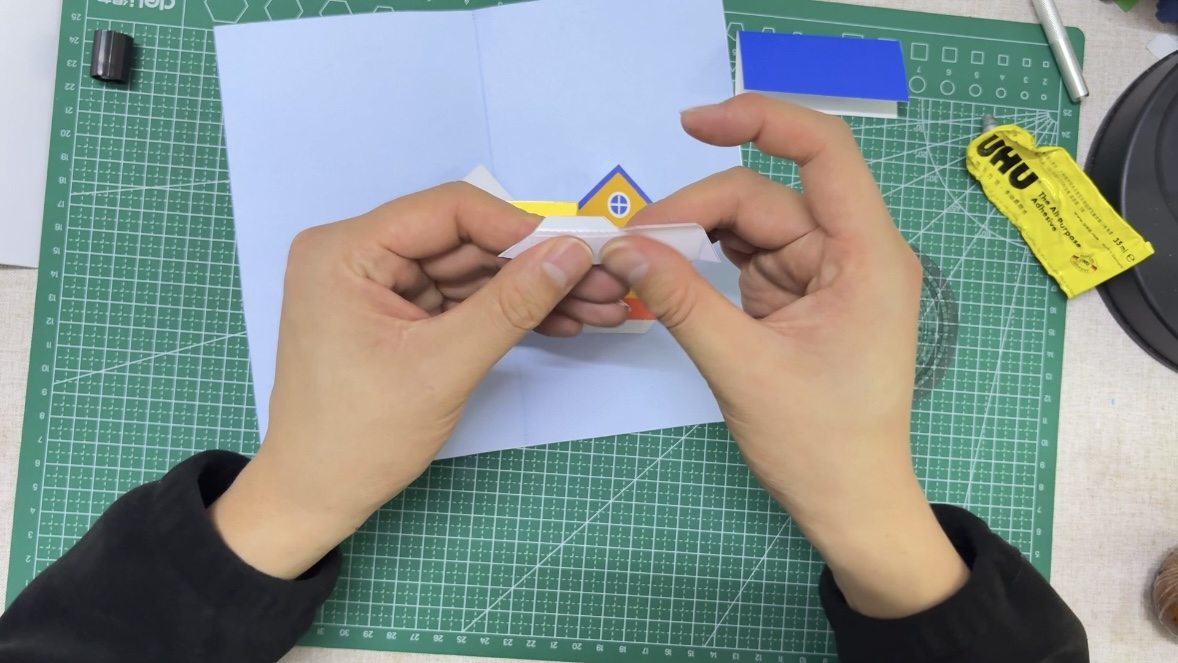

Step 5: Fold the House Body

Fold the house body along the scored lines. Shape the walls into a small house form, but do not glue it to the card base yet.

At this stage, test the shape with your hands. The walls should meet cleanly, and the bottom tabs should remain flat enough to attach to the card.

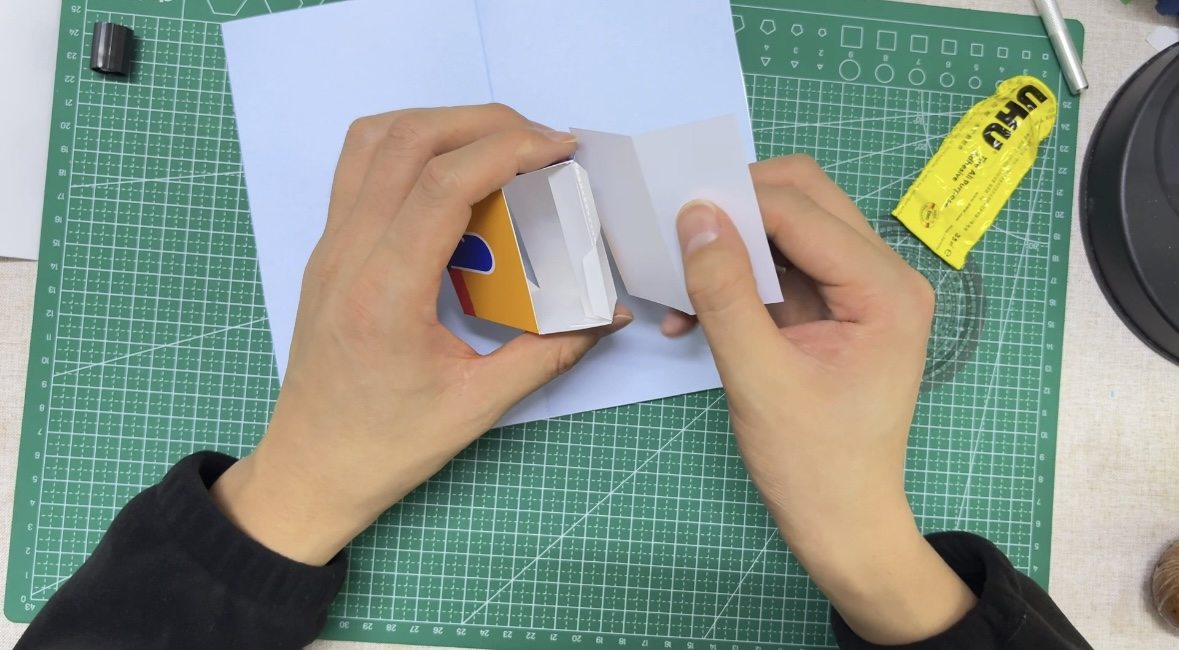

Step 6: Attach the Roof

Fold the roof piece and place it over the house body. The roof should sit evenly on both sides and follow the same movement as the house when the card closes.

If the roof feels stiff, score the fold again. If it is angled unevenly, adjust it before the glue dries. A clean roof fold helps the entire pop-up house card close flat.

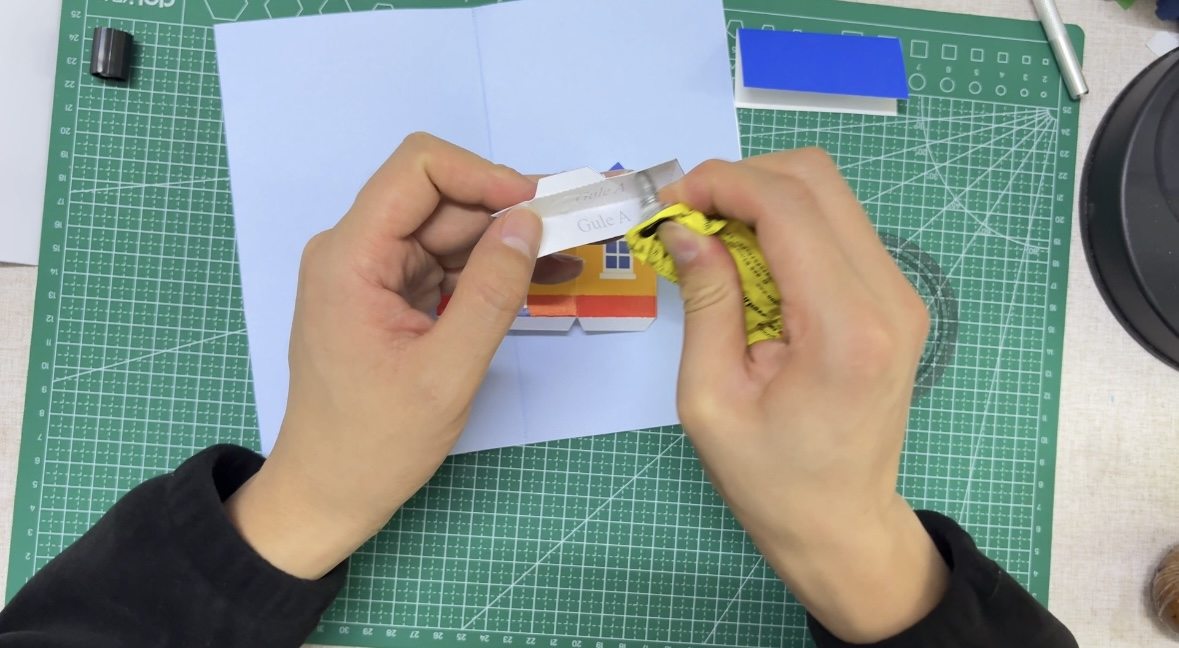

Step 7: Apply Glue to the Tabs

Apply a thin layer of glue only to the tabs. Avoid using too much glue, because excess glue can spread into the fold lines and stop the mechanism from moving smoothly.

The tabs should hold the house securely, but they should not block the folding action.

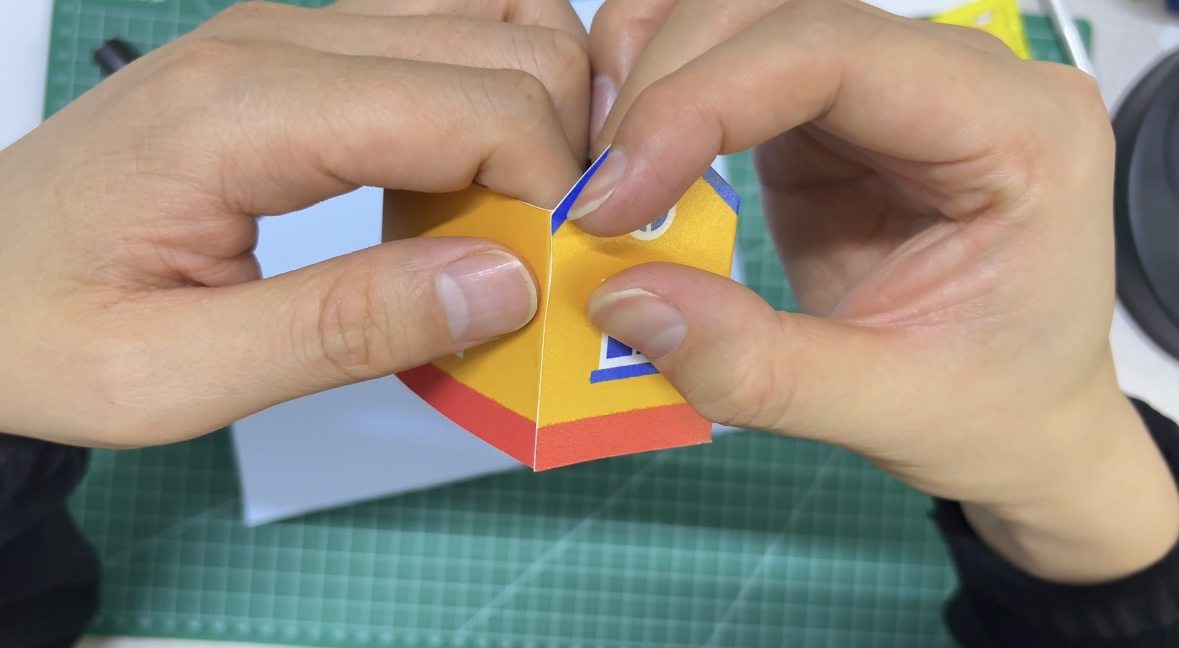

Step 8: Attach the House to the Card Center Fold

Find the center fold of the card base. Position the house near the fold and attach one side first. Then slowly close the card to help the second tab find the correct position.

Once the alignment looks right, press the second tab into place. Let the glue set before opening and closing the card several times.

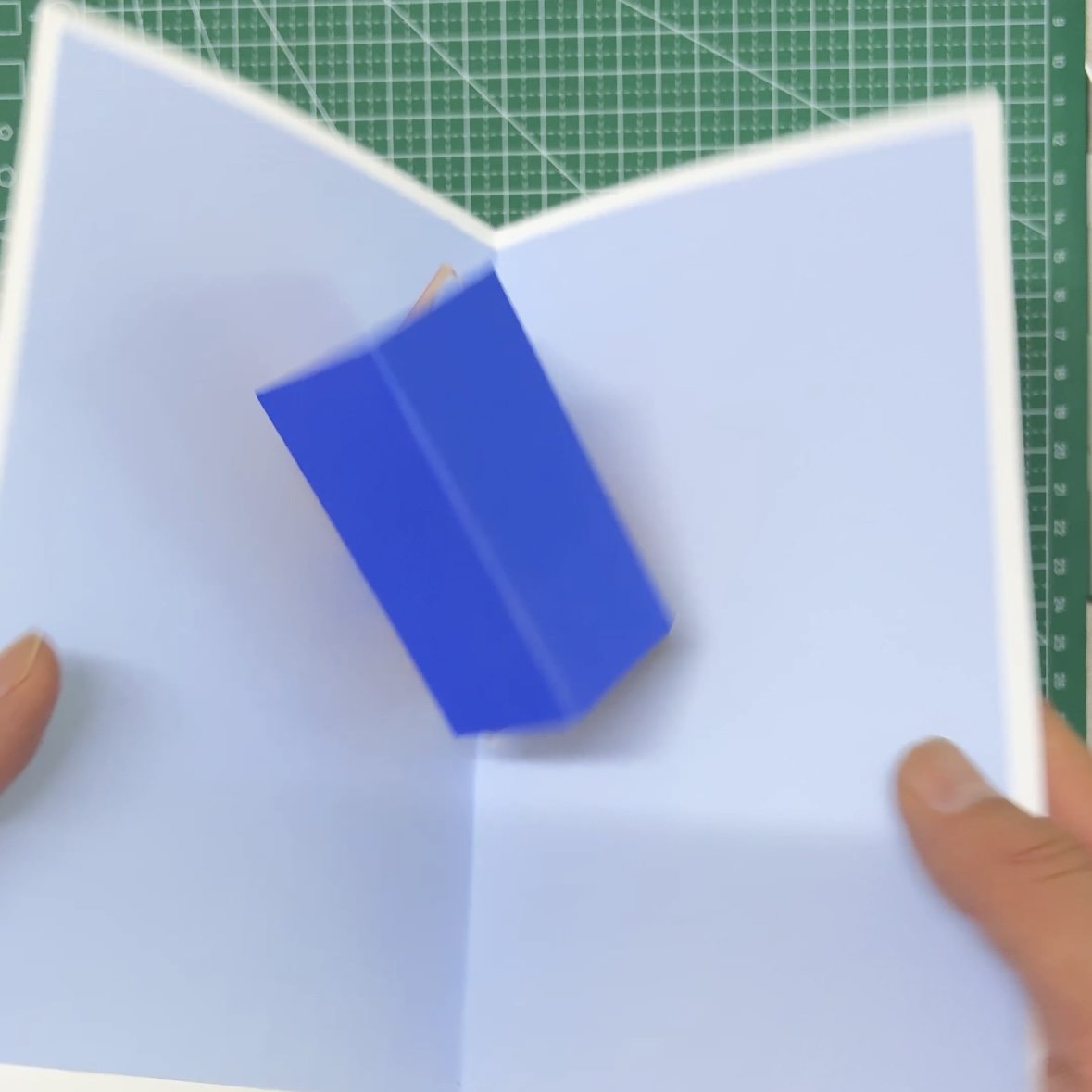

Step 9: Test the Closing Motion

Slowly close the card and watch how the house folds. The house should collapse without twisting, and the roof should not catch on the card base.

If the card does not close flat, check three things: the roof angle, the glue tab position, and the fold lines. Small adjustments often solve the problem.

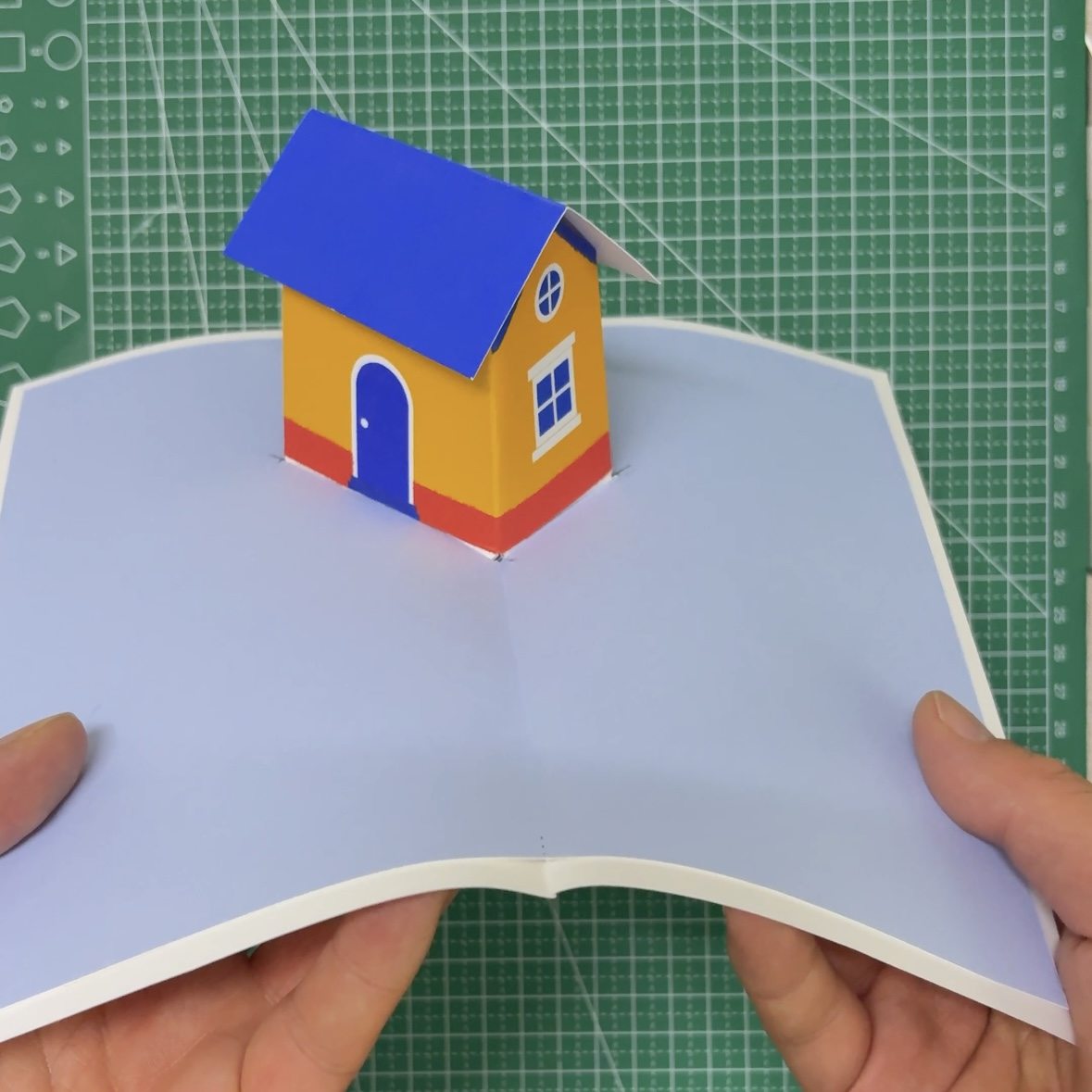

Step 10: Open the Finished Pop-Up House Card

Open the card again and check the final standing position. The house should rise upright when the card opens and fold back when the card closes.

Once the mechanism works smoothly, you can decorate the card, add a message, or customize the colors for birthdays, holidays, school projects, or handmade gifts.

Watch the Full Pop-Up House Mechanism Video Tutorial

The video below shows the full process in real time, including cutting, scoring, folding, gluing the tabs, attaching the house to the card base, and testing the closing motion. It is especially helpful if you want to see how the house body moves as the card opens and closes.

Use a Printable Pop-Up Mini House Template

If you want to skip drawing the mechanism from scratch, you can use the BrunoFold Pop-Up Mini House Card template.

The template includes the house body, roof, fold lines, glue tabs, and printable PDF pages, so you can focus on assembling and customizing the pop-up card.

Common Mistakes and How to Fix Them

If the house does not stand up, the glue tabs may be placed incorrectly or the fold lines may not be sharp enough. Re-score the folds and check whether the tabs are aligned with the card base.

If the card does not close flat, the roof may be catching on the card or the house may be too far from the center fold. Close the card slowly and look for the part that blocks the movement.

If the roof twists when closing, check whether both sides of the roof are folded evenly. A crooked roof can pull the house body out of shape.

If the glue tabs are visible, use less glue and keep the tabs tucked inside the structure. The tabs should support the mechanism without becoming the focus of the design.

If the paper tears at the fold line, the paper may be too thin or the fold may have been bent too many times without scoring. Use cardstock and score the fold lines before folding.
