The 180 degree boat fold structure is one of the most basic and stable paper-engineering structures used in pop-up books and pop-up cards. With two support faces, it forms a boat-like three-dimensional brace when the card opens fully to 180 degrees.
This mechanism is especially suitable for beginners because its opening logic is clear and its fold relationship is easy to understand. Once you grasp this structure, it becomes much easier to move on to architectural forms, scene elements, greeting cards, and other layered pop-up designs.
Mechanism Category
Primary Category: Basic Structure
Opening Angle: 180 Degree Structure
Structure Name: Boat Fold
Functional Role: Three-Dimensional Support Structure
Let's fold it together. Here are the step-by-step instructions:
Step-by-Step Guide
Step 1: Prepare the materials and tools
Before making the 180 degree boat fold structure, prepare the basic tools and suitable paper first. Because this mechanism relies on fold lines to create a stable triangular support, paper stiffness has a direct effect on the final result.
Cardstock around 200-250g is recommended. When the card opens fully to 180 degrees, this paper weight helps the structure stay upright without collapsing and keeps the edges looking clean. The basic tools include scissors or a craft knife, a ruler, glue or double-sided tape, and a cutting mat. Preparing everything in advance makes the process smoother and reduces deformation caused by unsuitable materials.

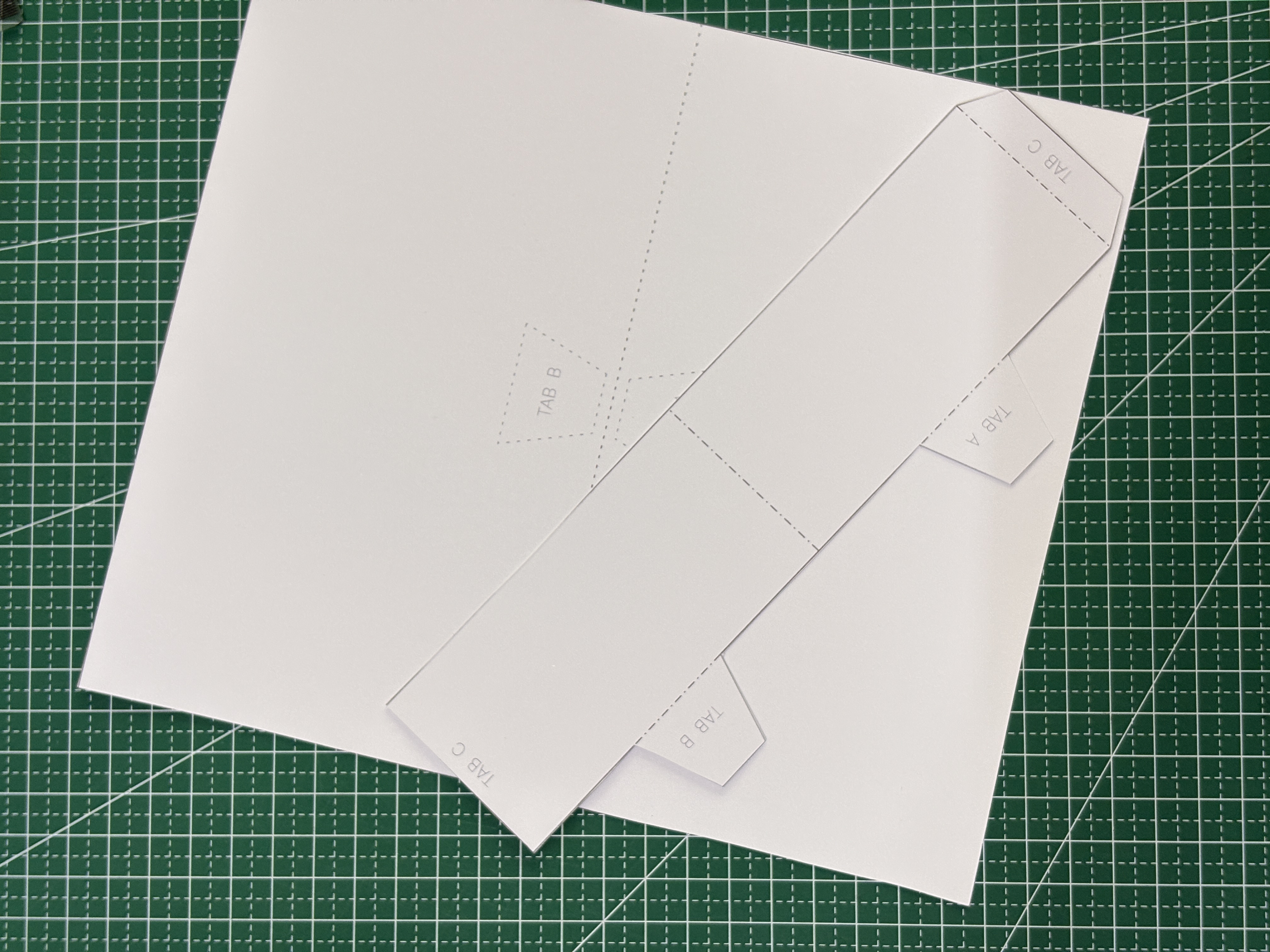

Step 2: Cut the template and score the fold lines
Cut the structure out along the solid template lines, making sure the edges stay neat and the proportions remain accurate. After cutting, score every dashed fold line. This is a key step for keeping the later folds precise.
Align a ruler with each fold line and use an empty ballpoint pen or a scoring tool to press lightly, creating a clear crease guide without going too deep. Proper scoring helps prevent rough edges and unwanted drift when thick paper is folded directly, making the later shaping process cleaner and easier to control.

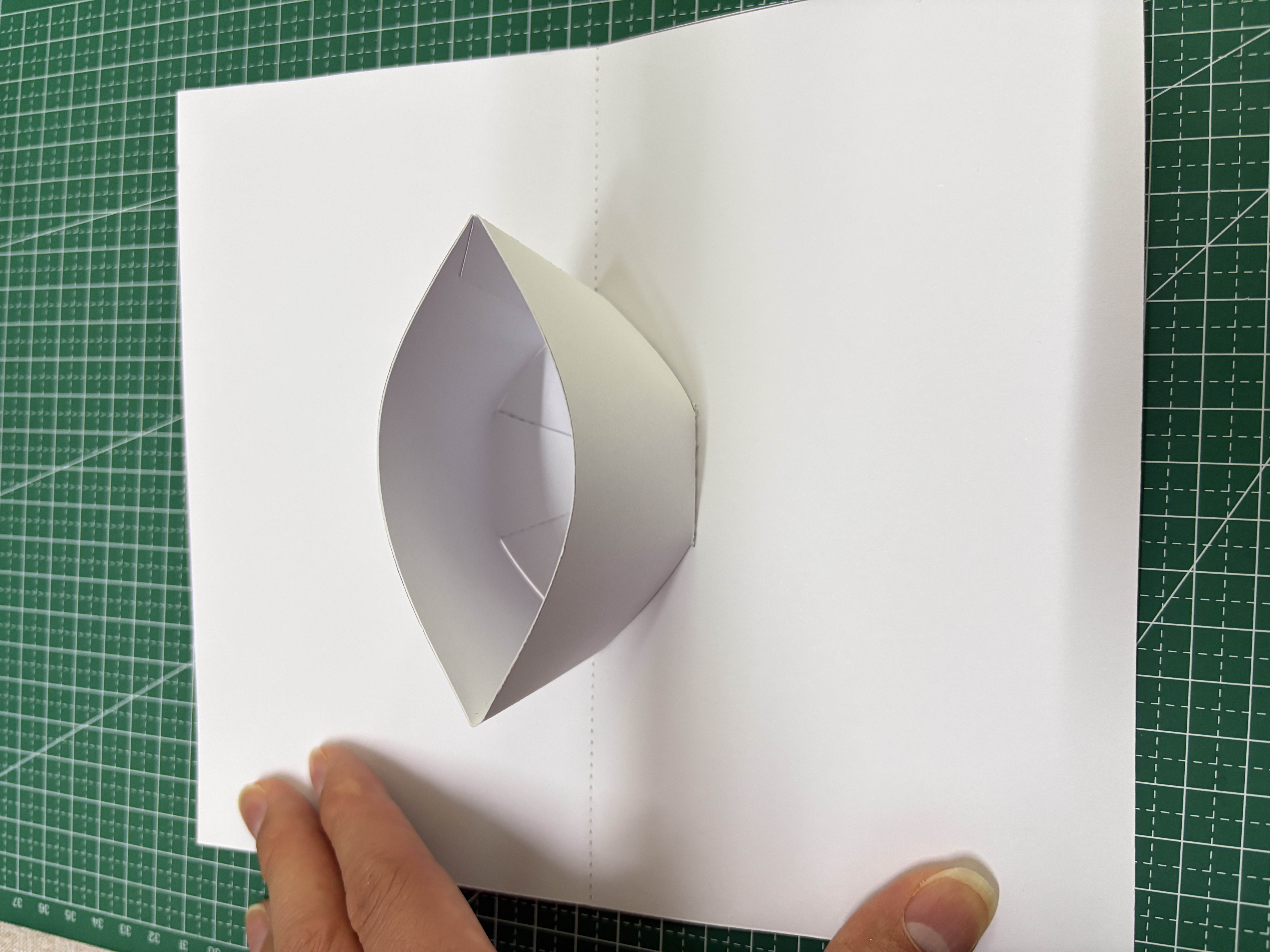

Step 3: Fold the structure and test the opening motion
Fold along the scored lines and guide the structure into its three-dimensional shape step by step. Do not force the paper all at once. Instead, use several light folds so the paper can settle naturally into place, which creates a smoother and more stable final result.
After folding, open the card slowly to 180 degrees and check whether the center structure rises naturally into a boat-like triangular support. If the motion looks uneven or catches while opening, adjust the fold lines or press the creases again until the structure opens and closes smoothly.
Note: Steps 2 and 3 currently reuse the Chinese visuals because separate English versions were not provided.
The PDF files below are available in both Chinese and English. Download the set you need.
PDF Downloads
Chinese Version
English Version
